Características
Certificación 80 PLUS Bronce

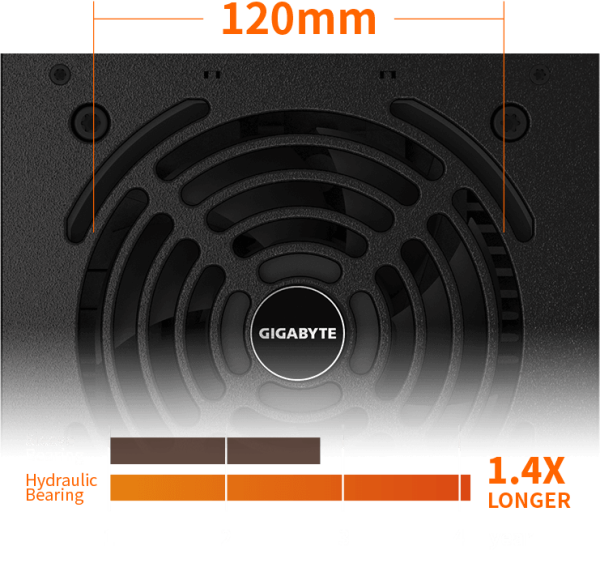

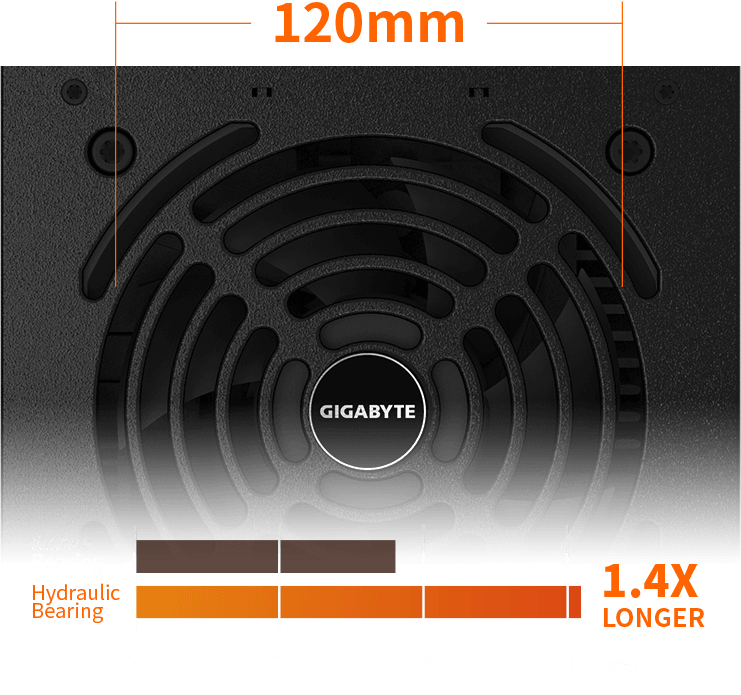

Ventilador silencioso con cojinete hidráulico (HYB) de 120 mm
Cable plano confiable
Carril único de +12 V
Protección OVP/OPP/SCP/UVP/OCP/OTP
Type
Intel Factor Forma ATX 12V v2.31
PFC
Activo PFC(>0.9 typical)
Voltage entrada
100-240 Vac(full range)
Input Current
8-4 A
Frecuncia entrada
60-50 Hz
Capacidad Salida
450W

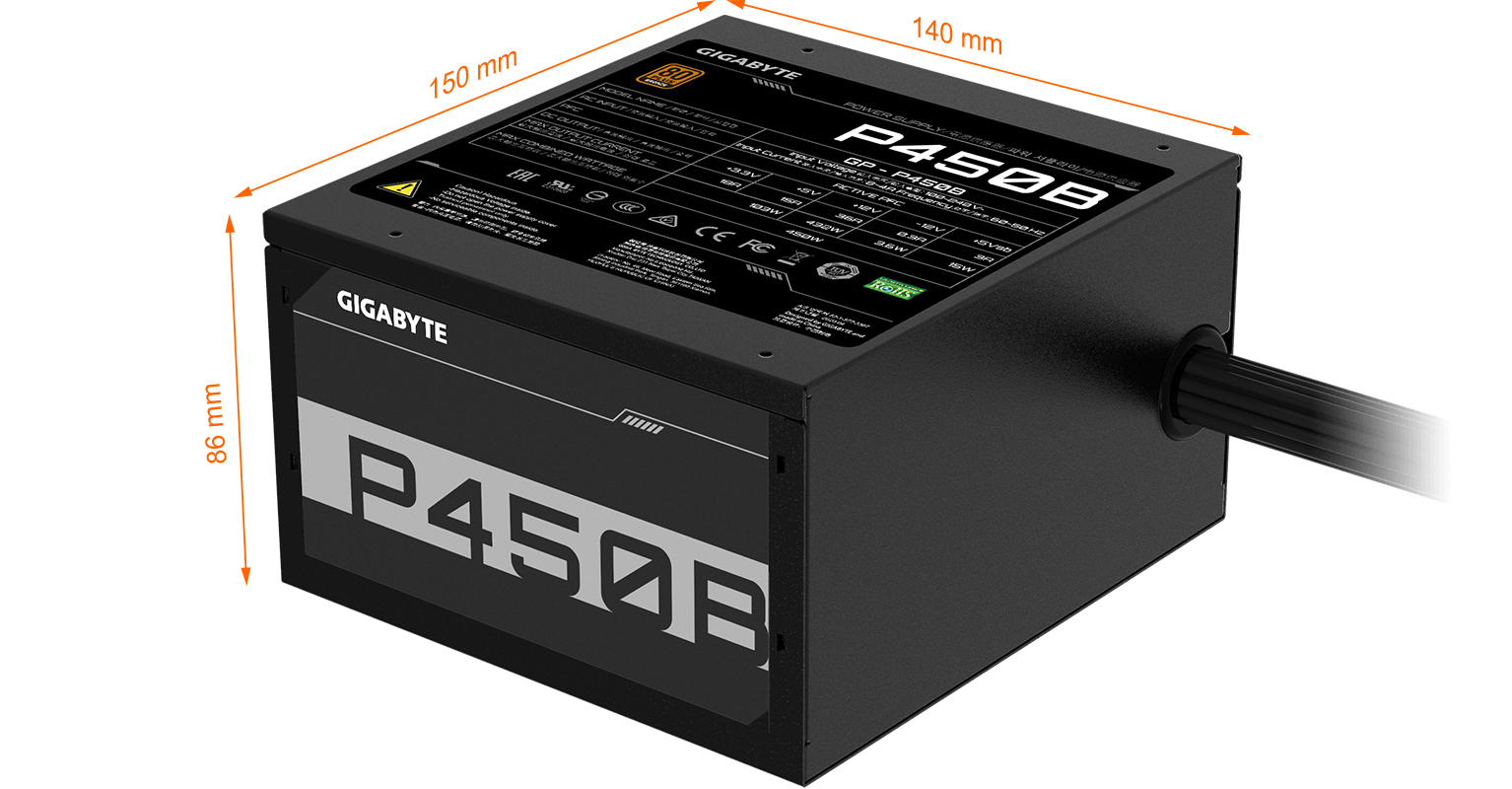

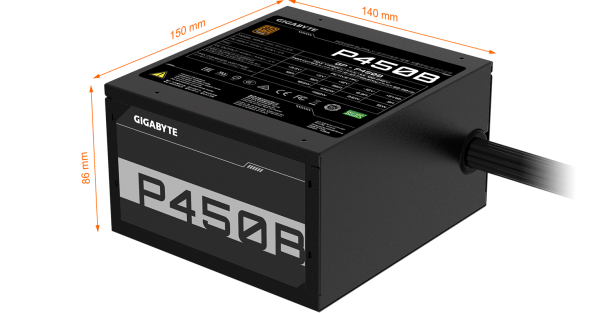

Dimensión
150 x 140 x 86 mm
Type Ventilador
120 mm Hydraulic Bearing (HYB) Fan
80 PLUS
Bronze
Eficiencia
85% at typical load
MTBF
>100,000 hours
Protection
OVP/OPP/SCP/UVP/OCP/OTP
Power Good Signal
100-500ms
Hold Up Time
>16ms
Type Cable
Flat, All black
Connectors
ATX/MB 20+4 Pin x 1 : 550mm*1
CPU/EPS 4+4 Pin x 1 : 600mm*1
PCI-e 6+2 Pin x 2 : 550mm+150mm*1
SATA x 6 : 500mm+120mm+120mm*2
4 Pin Peripheral x 3 + 4-Pin floppy x 1 : 500mm+120mm+120mm+120mm*1
